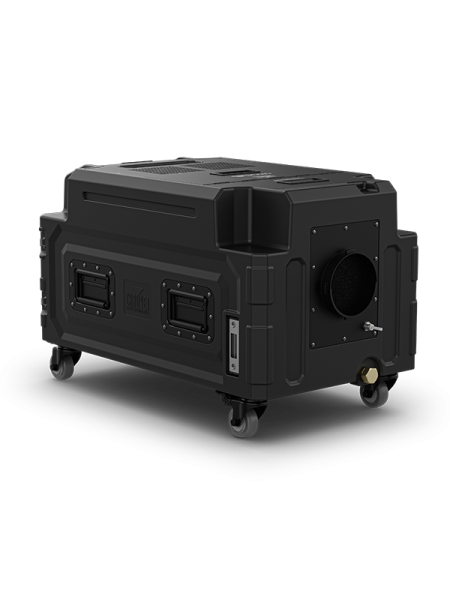

Cloud 9X IP (IP65 rated)
inkl. MwSt. zzgl. Versandkosten
Wenn verfügbar beim Hersteller, Lieferzeit ca. 1-3 Werktage.
* Die aktuelle Lieferzeit kann gerne vorab angefragt werden. Jetzt anfragen.
- Artikel-Nr.: CLOUD9XIP
At a Glance
Compact, professional fogger gives high-impact low-lying fog effect on stage or in ballrooms
Suitable for temporary outdoor/wet use
Continuous operation produces fog to cover 3,230 ft2 (300 m2) area
Ultrasonic agitators combine water with fog to produce low-lying fog effect
Ships in integrated, rugged flight case with locking casters suitable for rental/touring applications with removeable cover for rear panel

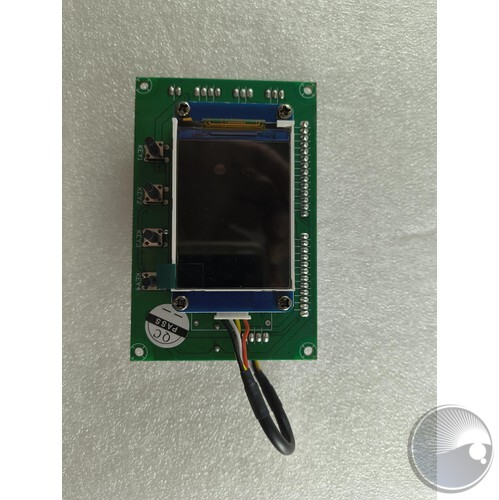

Control via on board full color display, wireless (RF) handheld remote, or DMX
Integrated water drainage system makes cleanup fast and easy
Use the low-lying fog fluid (LLG) to produce the CO² effect, which lasts for several minutes before dissipating
Use without dry ice or CO2, so no special licensing/training required
USB-C slot for software uploads
Specifications
Dynamic Effects
- Fan Performance: 81 cfm
- Low Fluid Shutdown: Yes
Construction / Physical
- Dimensions (without back cover): 30 x 17.36 x 19.22 in (762 x 441 x 488.1 mm)
- Dimensions (with back cover): 37.72 x 17.36 x 19.22 in (958 x 441 x 488.1 mm)
- Output Nozzle (Outer Diameter): 4.76 in (121 mm)
- Hose Length (Fully extended): 11 ft (3.4 m)
- Weight: 76.6 lb (34.75 kg)
- Exterior Color: Black
- Housing Material: Aluminum alloy, High-impact flame-retardant polymer
- Water Tank Capacity (Primary Tank): 5.28 gal (20 l)
- Water Tank Capacity (Reserve Tank): 2.48 gal (9.4 l)
- Water Tank Capacity (Total): 7.77 gal (29.4 l)
- Tank Capacity (Low-lying Fog Fluid): 0.8 gal (3 l)
- Fluid Consumption: 27.8 ml/min
- Maximum Runtime: 2 hr
Connections

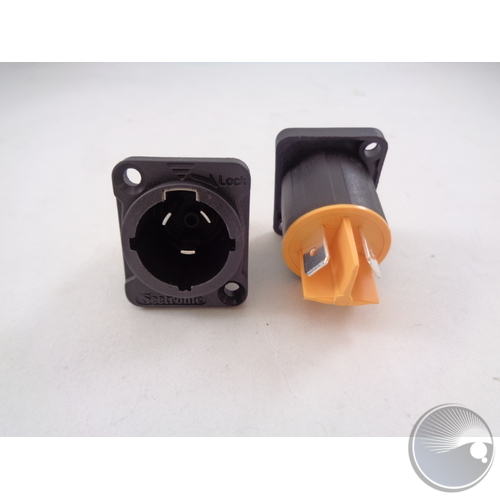

- Power Input: Seetronic Powerkon IP65
- Data Connectors: 3-pin/5-pin IP rated
- Cable Length (power): 5 ft (1.5 m)
- Firmware upgrades: USB type-C
Control
- Control Protocol: DMX, RDM, Wireless Remote
- DMX Channels: 3
- Modes/Personalities: 1 personality (3ch)
- On-Board Control: Yes
- Included Remote: Yes
Electrical
- Input Voltage: 120 VAC, 60 Hz
- Input Voltage: 230 VAC, 50 Hz
- Power and Current: 1960 W, 17.5 A @ 120 V, 60 Hz
- Power and Current: 1281 W, 5.59 A @ 230 V, 50 Hz
- Heat-up Time: 5 min
- Breaker Size: 10 A, 250 V
Certifications / Qualifications
- CE, ROHS, UKCA
- IP Rating: IP54, temporary outdoor/wet use
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
What's Included
- Cloud 9 X IP
- Seetronic Powerkon IP65 power cable
- RF remote (2-button)
- Hose clamps (x2)
- Barbed hose adapter (0.5 in)
- 6ft (2m) output hose, 5 in, (130 mm) diameter
- Removable rear cover
- Hose coupler, 5 in (130mm) diameter

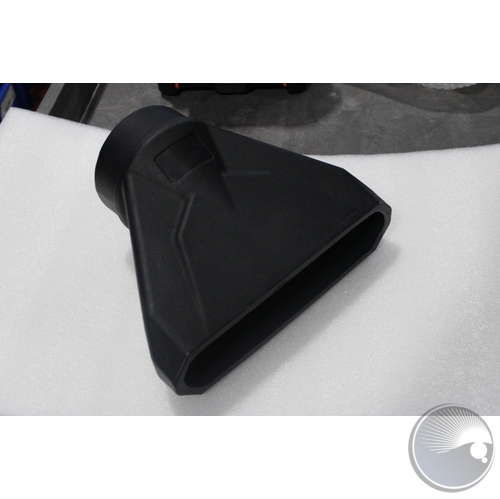

- Floor nozzle, 5 in (130mm) diameter
- Overfill hose (polyurethane, 6mmOD, 4mm ID, 80 in / 204 cm)
- Quick Reference Guide
Required Accessories
- Accessories (required): Fog Fluid-LLG
- Compatible Mounting Options: Floor Mount/Positioning only w/locking wheels
Optional Accessories
- Neutrik powerKON cables
- DMX Cables
