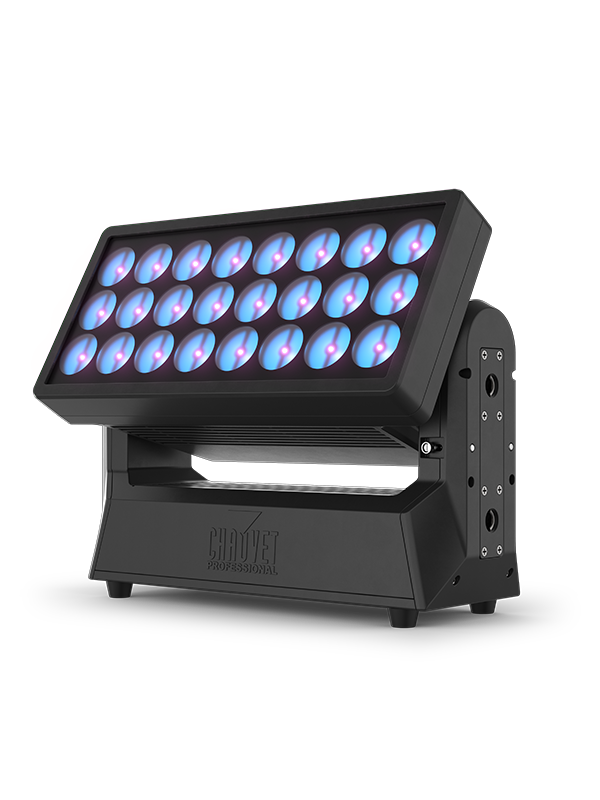

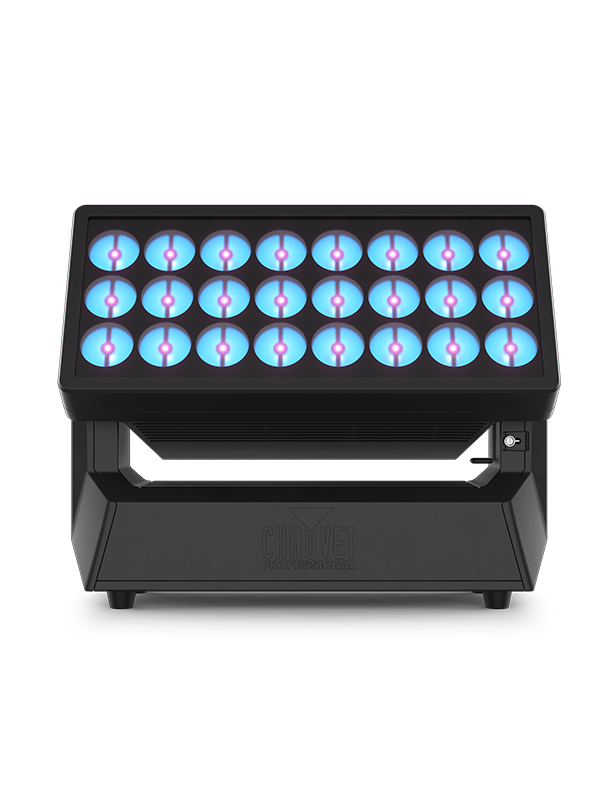

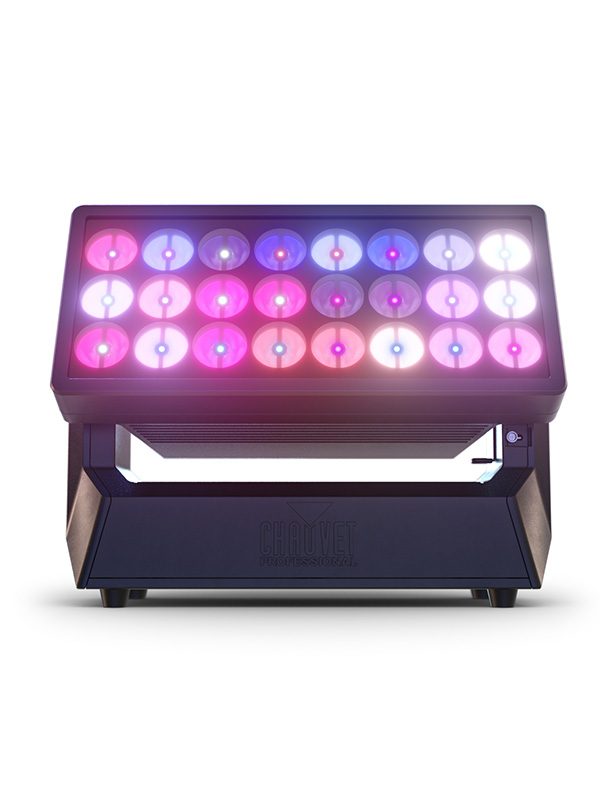

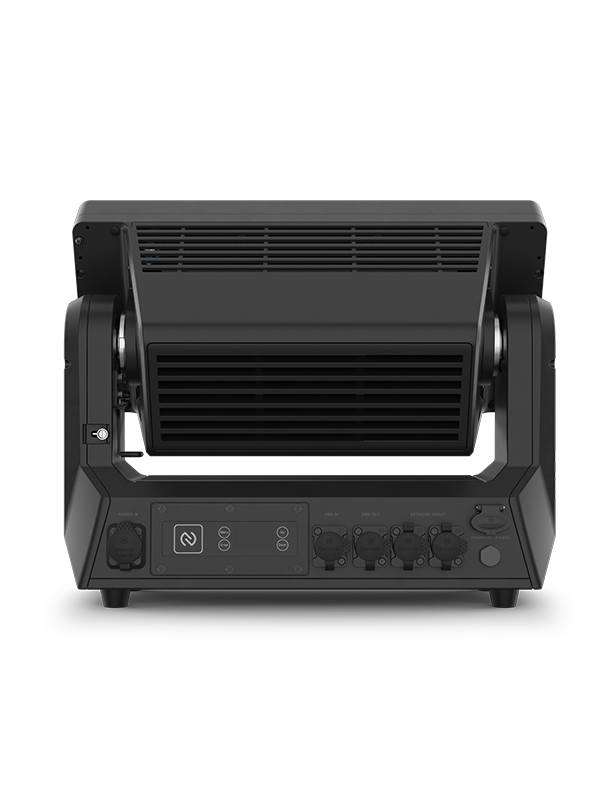

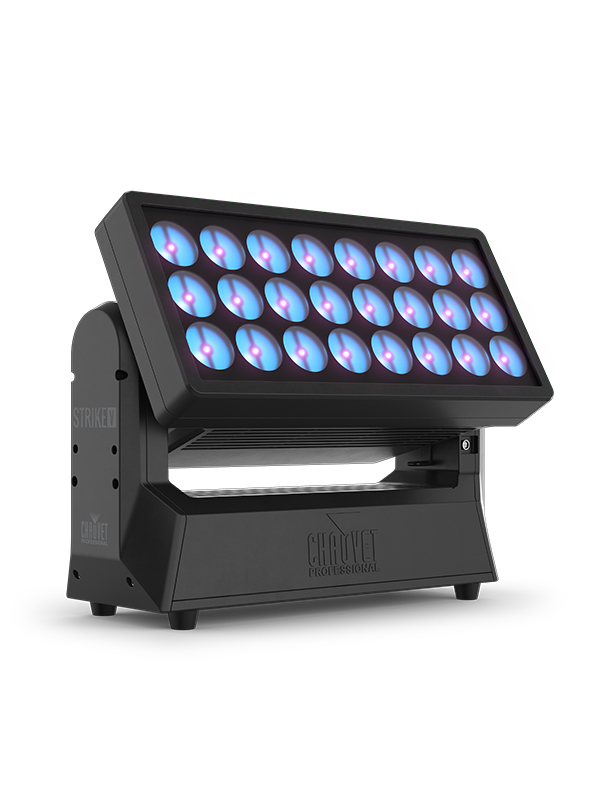

Strike V (IP65 Rated)
inkl. MwSt. zzgl. Versandkosten
Wenn verfügbar beim Hersteller, Lieferzeit ca. 1-3 Werktage.
* Die aktuelle Lieferzeit kann gerne vorab angefragt werden. Jetzt anfragen.
- Artikel-Nr.: STRIKEV
At a Glance
Fully featured, high-power, 180° tilting hybrid strobe/wash with IP65 rating for all-weather use
48 individually controllable pixels across two layers of LEDs
Variable electronic frost for added eye candy effects
Included magnetically attachable stealth filter for hiding the LEDs when not in use
Multiple mounting locations and repositionable yoke with ¼ turn adaptors for creative and convenient rigging options in vertical and horizontal orientations
RDM control over DMX for fixture reporting
16-bit dimming of master dimmer for smooth control of fades

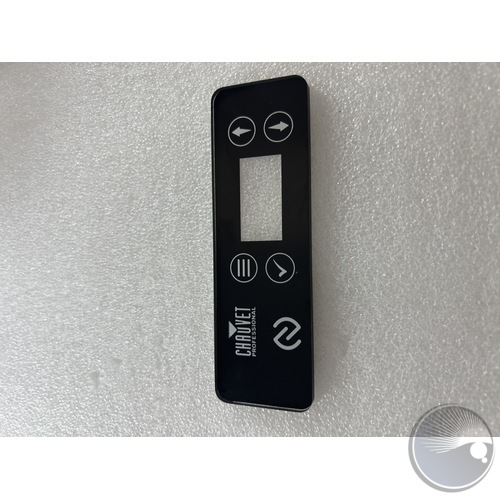

Easy-to-use OLED display
Rugged design for years of rough use in the most extreme conditions.
Adjustable Pulse Width Modulation (PWM) for added flexibility
USB port for fixture software updates
Built-in alignment pins to insure perfectly straight linear arrays
Failsafe Ethernet connectivity allows for data to pass even if fixture power is lost
Specifications
Optical
- Light Source: 24 LEDs top plate (quad-color RGBW), 6W, 50,000 hours life expectancy
- Light Source: 24 LEDs bottom plate (quad-color RGBW), 50W, 50,000 hours life expectancy
- Beam Angle (Combine): 9.9°
- Beam Angle (Dot): 105.7°
- Beam Angle (Cell): 9.9°
- Beam Angle (w/E-Frost Combine): 50.3°
- Beam Angle (w/E-Frost Dot): 103.1°
- Beam Angle (w/E-Frost Cell): 46.8°
- Field Angle (Combine): 17.6°
- Field Angle (Top Plate): 153.1°
- Field Angle (Cell): 17.5°
- Field Angle (w/E-Frost Combine): 125°
- Field Angle (w/E-Frost Dot): 155.6°
- Field Angle (w/E-Frost Cell): 117.2°
- Lumens (Combine): 19,589
- Lumens (Dot): 1,912
- Lumens (Cell): 17,127
- Lumens (w/E-Frost Combine): 13,406
- Lumens (w/E-Frost Dot): 1,633
- Lumens (w/E-Frost Cell): 15,769
- Illuminance (Combine): 16,779 lux @ 5 m
- Illuminance (Dot): 29 lux @ 5 m
- Illuminance (Cell): 16,789 lux @ 5 m
- Illuminance (w/E-Frost Combine): 539 lux @ 5 m
- Illuminance (w/E-Frost Dot): 26 lux @ 5 m
- Illuminance (w/E-Frost Cell): 536 lux @ 5 m
- Selectable PWM: 1000Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25000 Hz, 64,000 Hz
Dynamic Effects
- Tilt: 180°
- Tilt Ranges: 0° to 180°
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 0 to 30 Hz
- Standalone Color Mixing: Yes
- Dim Modes: 4
- Built-in Automated Programs: Yes
Construction / Physical
- Dimensions: 16 x 7.3 x 12.2 in (407 x 187.4 x 310 mm)
- Weight: 36 lb (16.3 kg)
- Exterior Color: Black
- Housing Material: AZ91D Magnesium diecast
Connections
- Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
- Cable Length (power): 5 ft (1.5 m)
Control
- Control Protocol: Art-Net, DMX, RDM, sACN
- DMX, ArtNet, and sACN Channels single mode 29,222,314
- DMX, ArtNet, and sACN Channels Dual mode Movement: 30
- DMX, ArtNet, and sACN Channels Dual Mode Pixels: 144,192,240,288
- ArtNet and sACN Channels Multi-Layer Control Movement: 30
- ArtNet and sACN Channels Multi-Layer Control Dot Pixels: 72,96,120,144
- ArtNet and sACN Channels Multi-Layer Control Cell Pixels: 72,96,120,144
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 747 W, 7.54 A @ 100 V, 60 Hz
- Power and Current: 747 W, 6.20 A @ 120 V, 60
- Power and Current: 719 W, 3.63 A @ 208 V, 60 Hz
- Power and Current: 717 W, 3.28 A @ 230 V, 50 Hz
- Power and Current: 717 W, 3.17 A @ 240 V, 50 Hz
Battery
Certifications / Qualifications
- CE, MET, ROHS, FCC
- IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
- Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)
- Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)
What's Included
- STRIKE V
- Seetronic Powerkon IP65 power cord

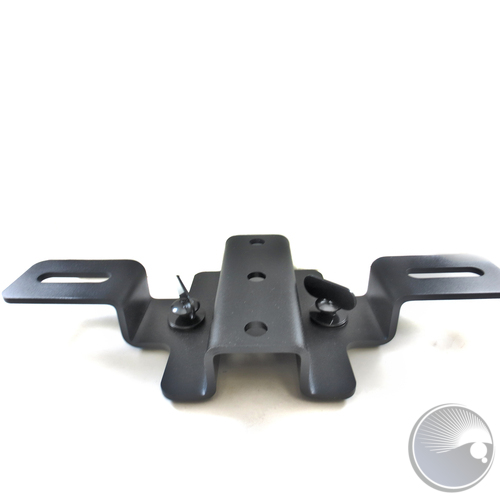

- Omega bracket
- Stealth filter
Optional Accessories
- Professional Clamps: CTC-50HC, CTC-50HCN
- Safety Cable: SC-08
- IP Rated Seetronic® Powerkon Extensions
- IP Rated DMX cables
- IP Rated EtherCon Cables
- UPLOAD 03 software uploader
