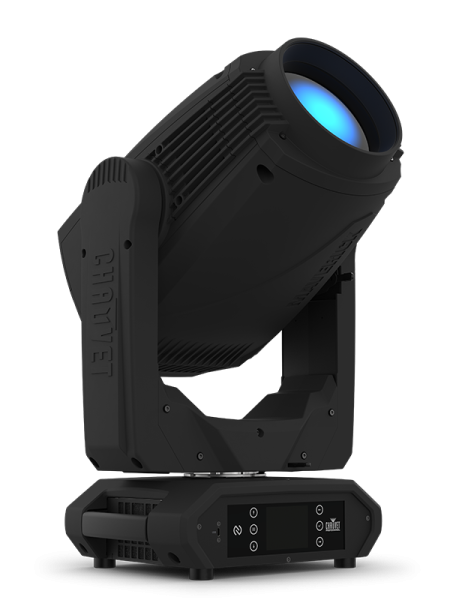

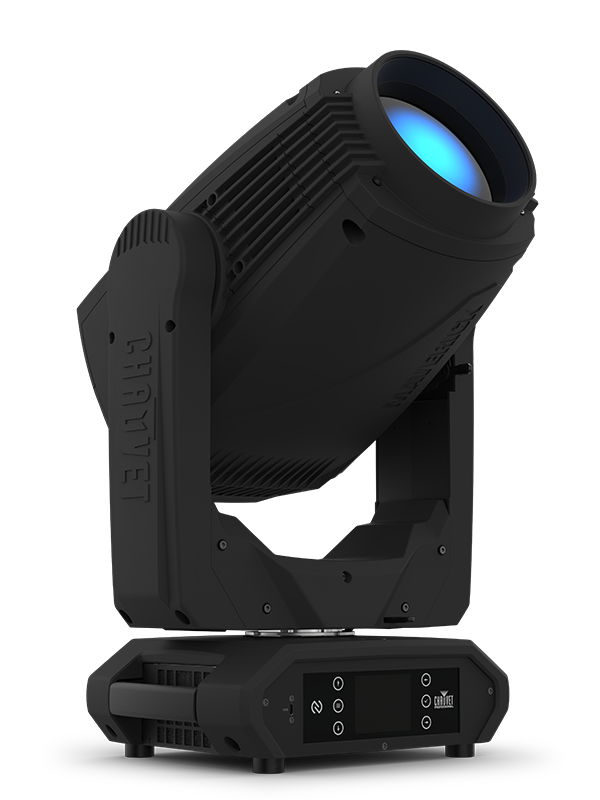

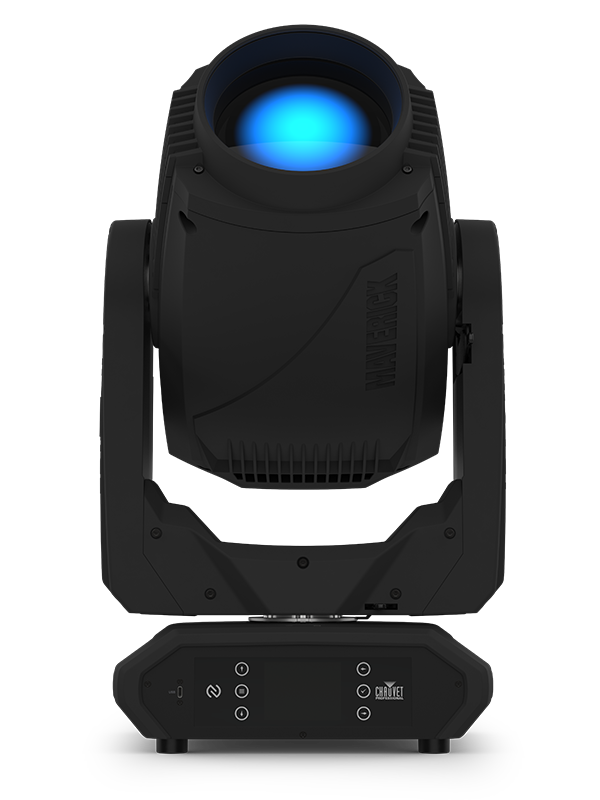

Maverick Force X Spot
inkl. MwSt. zzgl. Versandkosten
Wenn verfügbar beim Hersteller, Lieferzeit ca. 1-3 Werktage.
* Die aktuelle Lieferzeit kann gerne vorab angefragt werden. Jetzt anfragen.
- Artikel-Nr.: MAVERICKFORCEXSPOT
At a Glance
Fully featured, compact and lightweight 520 W LED yoke spot fixture including CMY color mixing, a color wheel, zoom optics, and two gobo wheels: one rotating, and one static
16-bit dimming of master dimmer for smooth control of fades
65,000 PWM for use with the fastest frame cameras, but still maintains fantastic dimming
Variable CMY color mixing system to create a wide pallet of colors
DMX, CRMX, sACN, and Art-Net for full flexibility of control options
RDM-enabled for remote addressing and trouble shooting
3.5° to 57.7° zoom range for variable beam sizes
Iris, 5-facet prism, and frost for beam control
True-1 compatible power input
Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
USB slot for software uploads
Battery backup display with auto-rotate depending on fixture orientation
Failsafe Ethernet connectivity allows data to pass even if fixture power is lost
NFC for quick/easy fixture setup in the shop or in the field
Specifications
Optical
- Light Source: 1 LED (CW) 520 W, (4.2 A), 6462 K, 50,000
- Color Temperature (at full): 6462 K
- Front lens diameters: 145 mm
- CRI: 72.2
- CRI with CRI filter: 90
- Beam Angle: 3.5° to 51.3°
- Field Angle: 3.7° to 56.3°
- Cutoff Angle: 3.9° to 57.7°
- Zoom Range: 3.5° to 57.7°
- Lumens - Output: 17,325
- Illuminance(3.5°) : 93,084 lux @ 5 m
- Illuminance (57.7°) : 1,135 lux @ 5 m
- Selectables PWM : 600Hz, 1500Hz, 2000Hz 65000Hz
Dynamic Effects
- Pan and Tilt: 540°/270°
- Pan and Tilt ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
- Colors: 7 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
- Colors: CMY wheels
- Color Macros: # macros

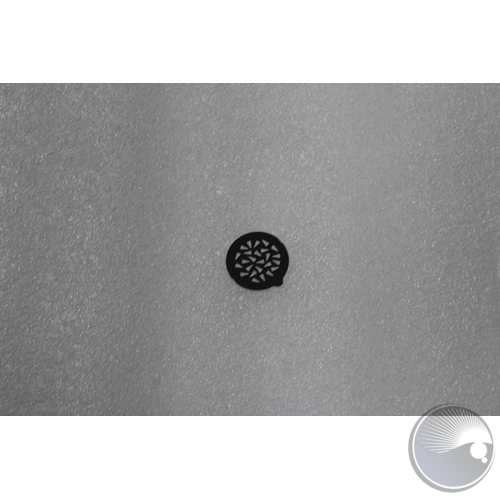

- Gobos (1): 7 + open (1 metal + 6 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds

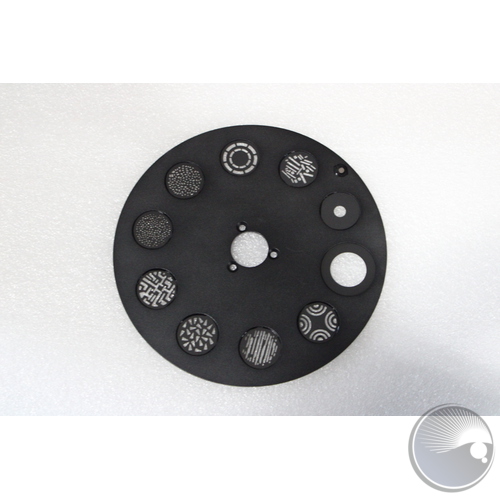

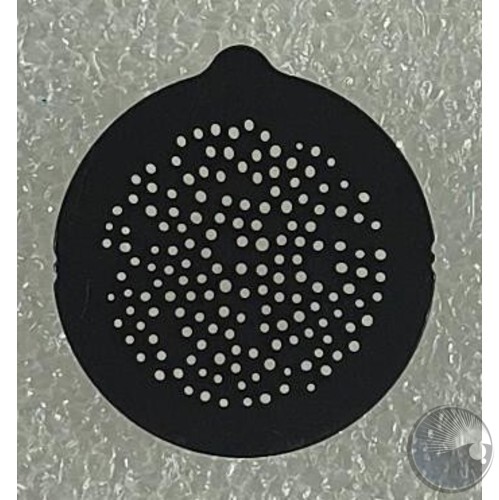

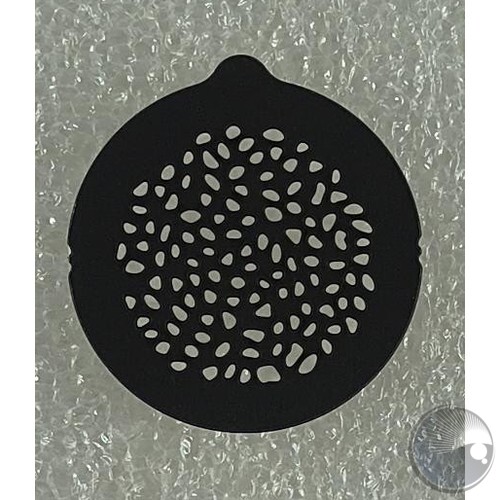

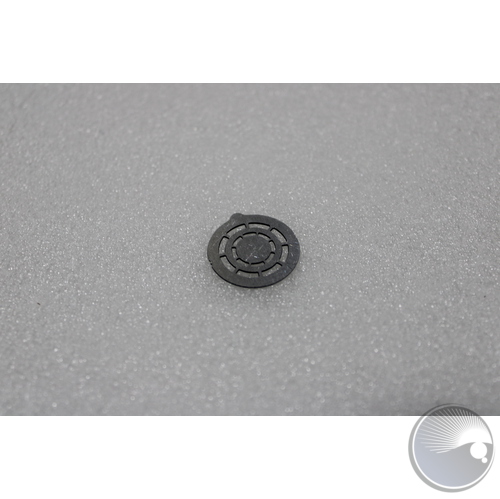

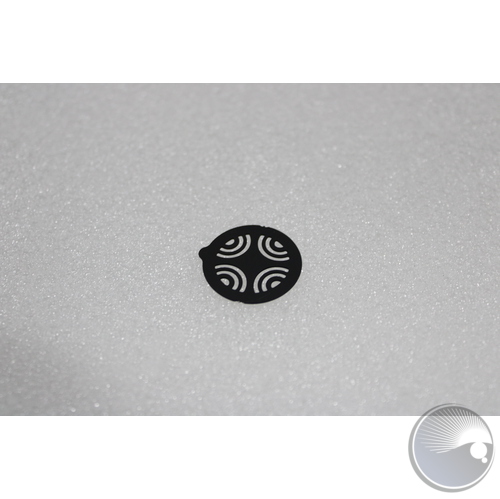

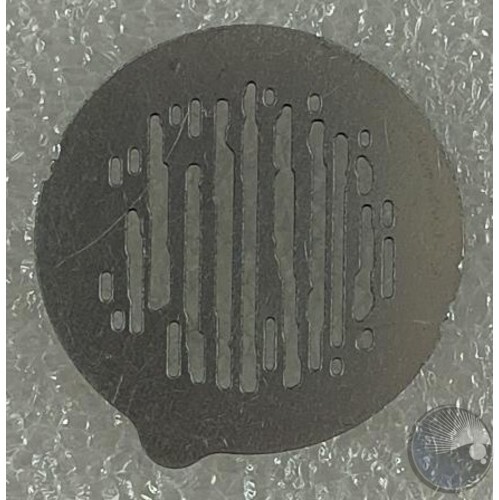

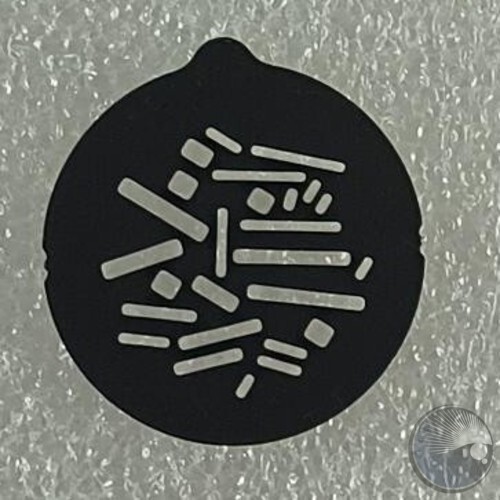

- Gobos (2) 9+ open (9 metal) continuous scroll at variable speeds
- Gobo Size: Gobo Wheel 1 (rotating): 24 mm (outside), 14 mm (image), 1.1 mm (max. thickness)
- Dimmer: Electronic
- Shutter/Strobo: Electronic
- Zoom: Motorized
- Focus: Motorized
- Frost: Motorized
- Iris: Motorized
- Prism: 5-facet, motorized, rotating
- Strobe Rate: 0 to 25 Hz
- Move-in-Black: yes
- Dim Curves: 5
Construction / Physical
- Dimensions: 14.21 x 9.40 x 25.43 in (361 x 239 x 646 mm)
- Weight: 44.2 lbs (20 kg)
- Exterior Color: Black
- Housing Material: Aluminum die-cast, High-impact flame-retardant polymer, Steel

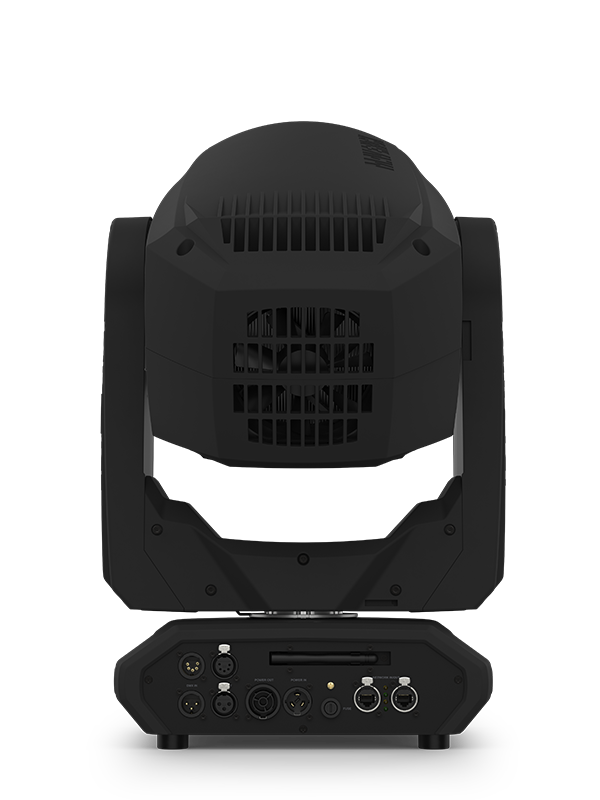

Connections
- Power Connection: Edison plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Power Output: Seetronic Powerkon IP65
- Data Connectors: 3- and 5-pin IP65 XLR, Seetronic etherCON
- Cable Length (signal): 5 ft (1.5 m)
Control
- DMX Channels: 22 or 29
- Art-Net Channels : 22 or 29
- Modoes/Personalities: 2 personalities (22, 29)
Electrical
- Input Voltage: 100 a 240 VAC, 50/60 Hz
- Power Linking: 2 units @ 120 V; 4 units @ 208 V; 5 units @ 230 V
- Power and Current: 554 W, 4.64 A @ 120 V, 60 Hz
- Power and Current: 541 W, 2.68 A @ 208 V, 60 Hz
- Power and Current: 542 W, 2.44 A @ 230 V, 50 Hz
Battery
- Battery type: Lithium Ion (display screen backup)
- Rechargable: Yes
- Battery Charge Time: 5 hours
- Battery Life: 1 hour
- Battery Power: 3.7 V, 500 mAh
Certifications / Qualifications
- CE, MET, FCC, UKCA
- IP Rating: IP20, dry location
- Temperature (Ambient):-4 °F to 113 °F ( -20 °C a 45 °C )
What's Included
- Maverick Force X Spot
- Seetronic Powerkon power cable
- Omega brackets with mounting accessories
Optional Accessories
- Clamps
- RigLink IP65 powerCON cables
- RigLink etherCON cables
- DMX cables
- Flight Cases
- CP Rack
- PowerStream 4 IP
